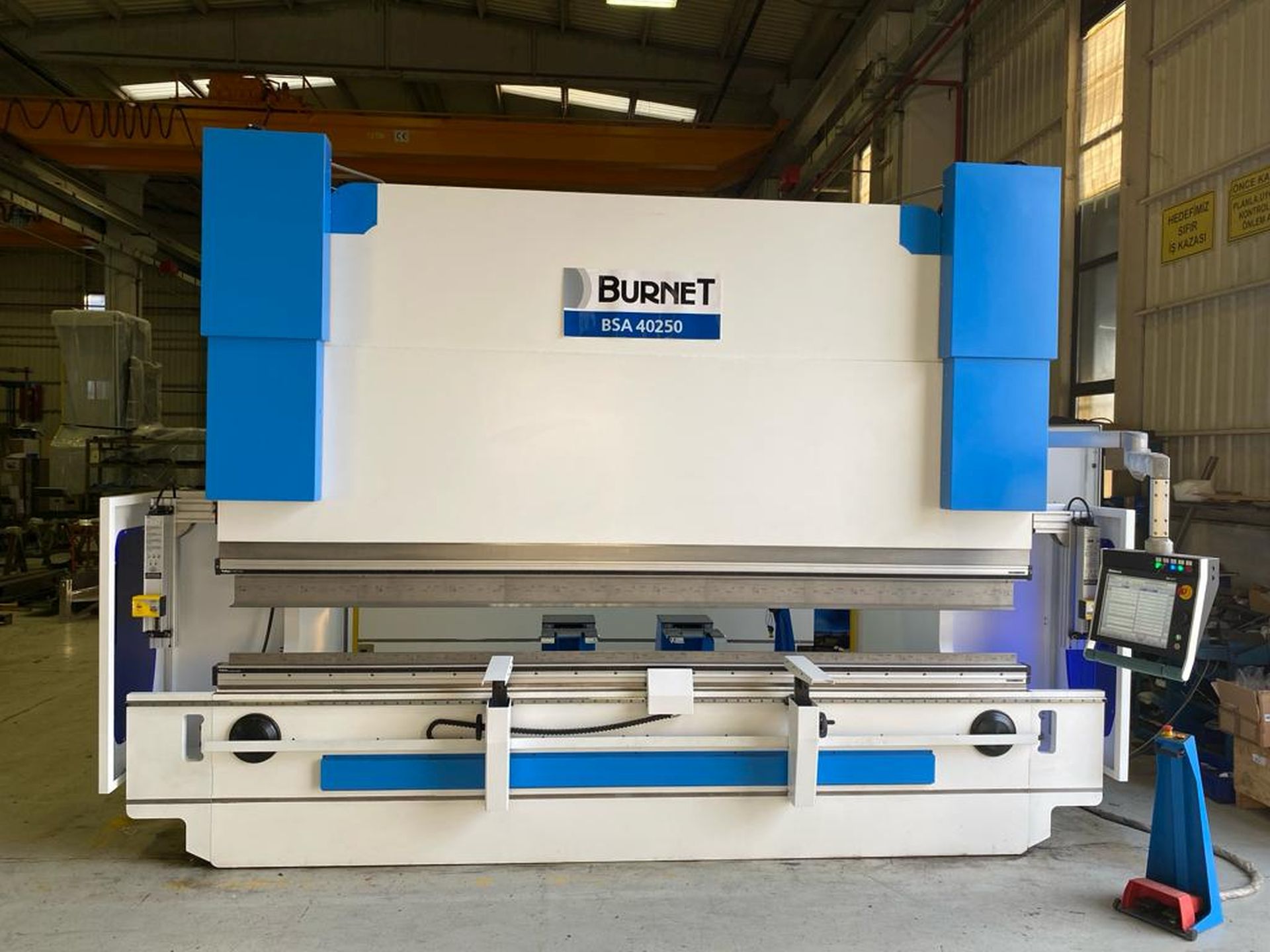

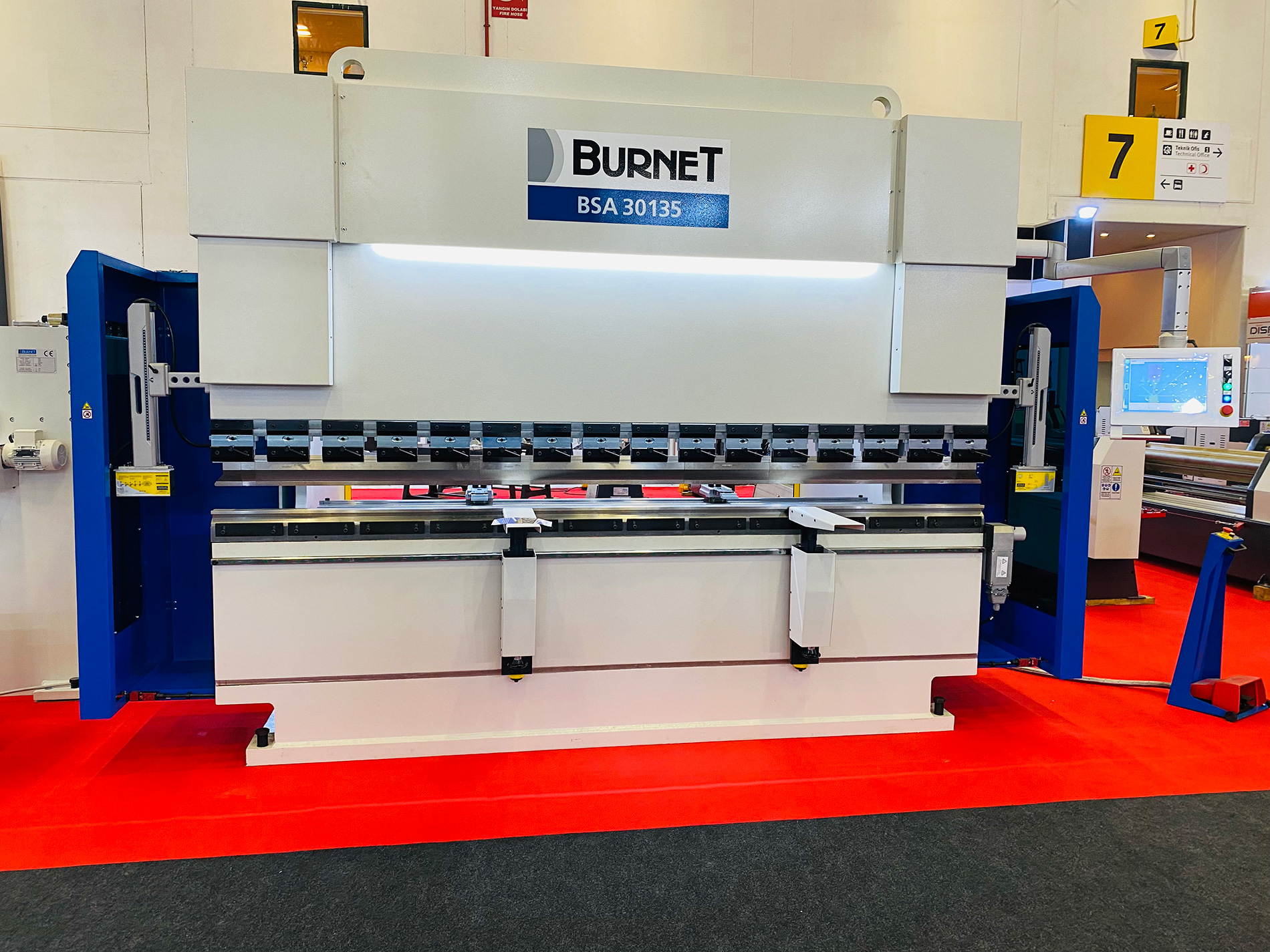

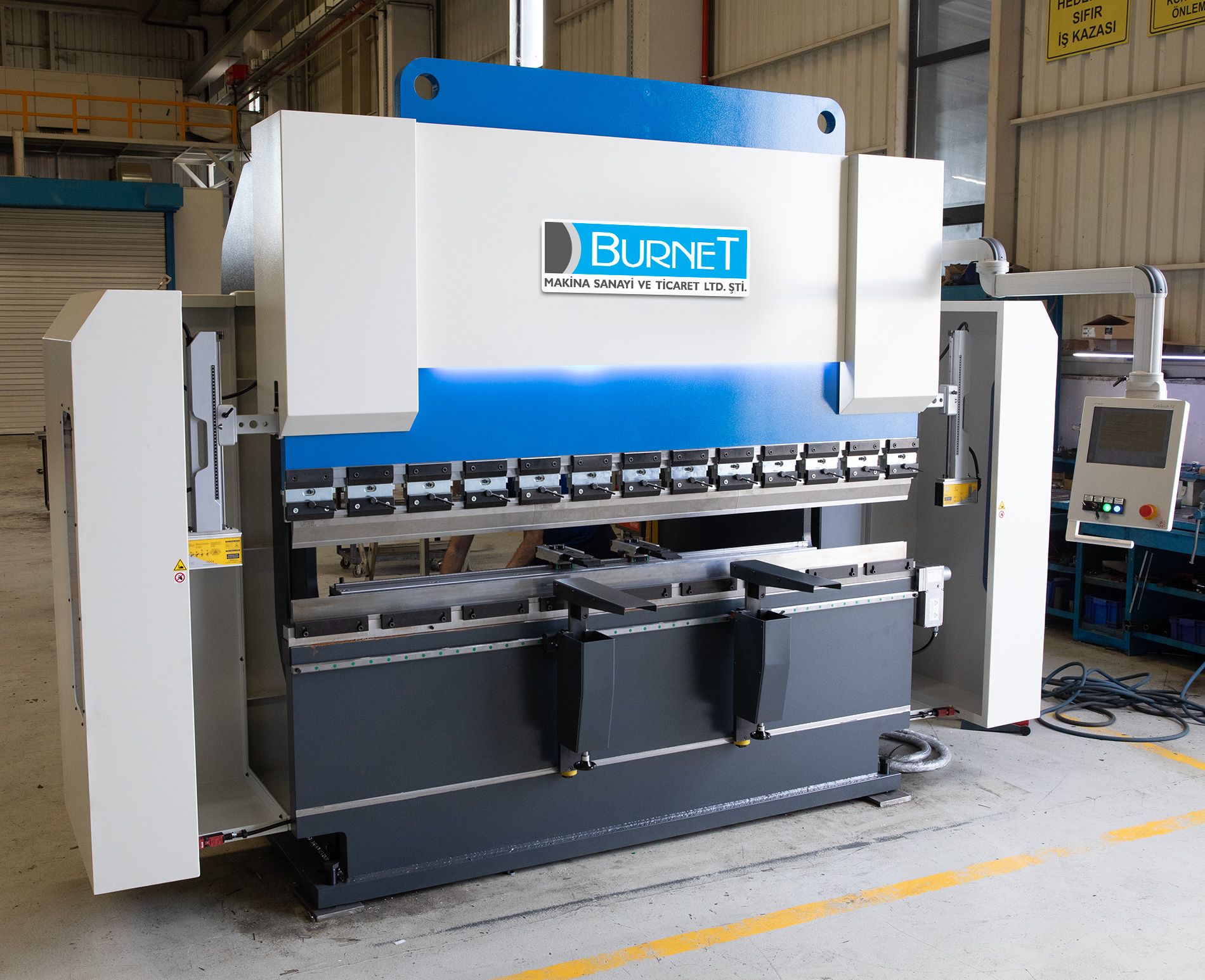

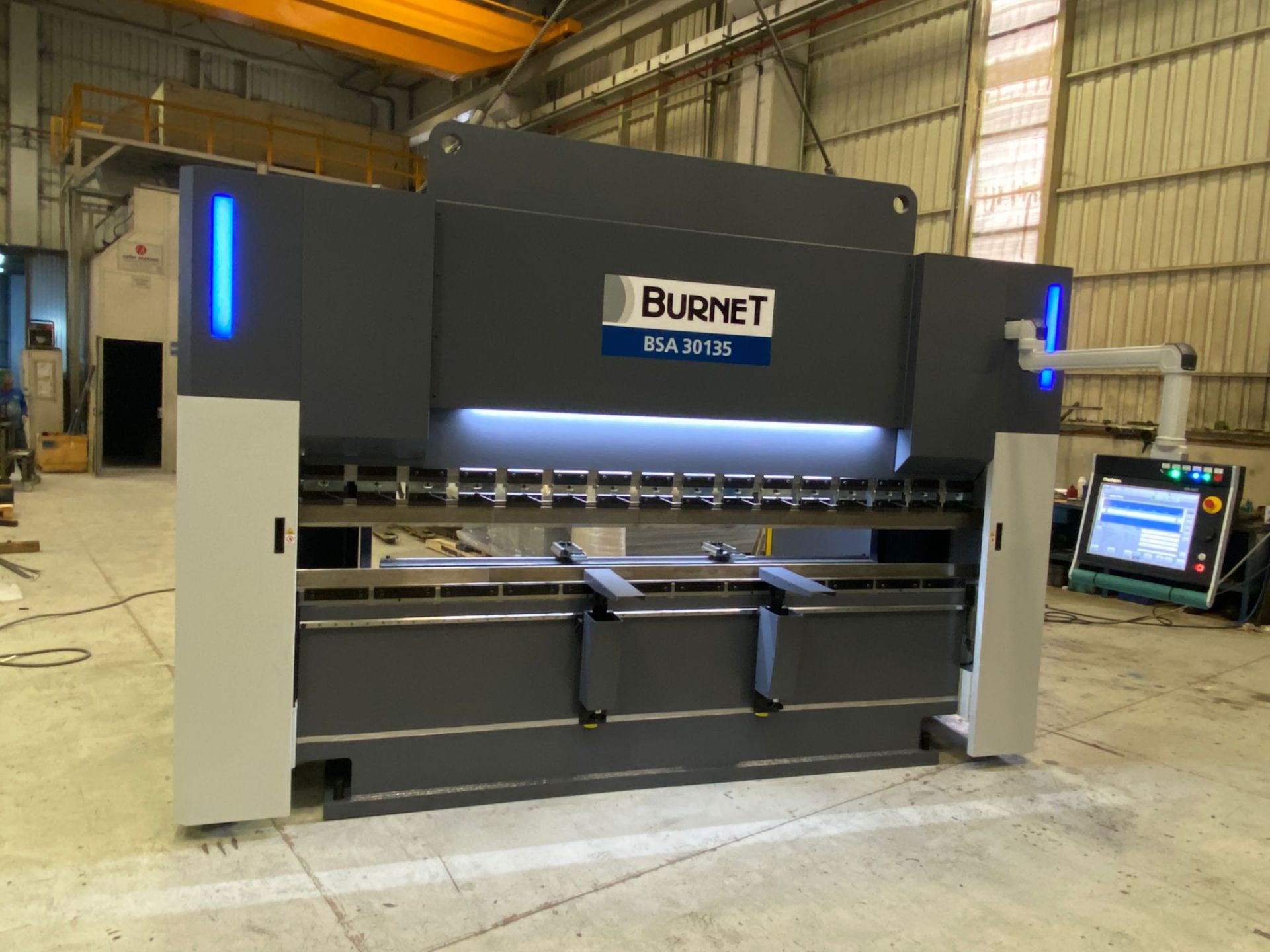

BSA Series Press Brakes

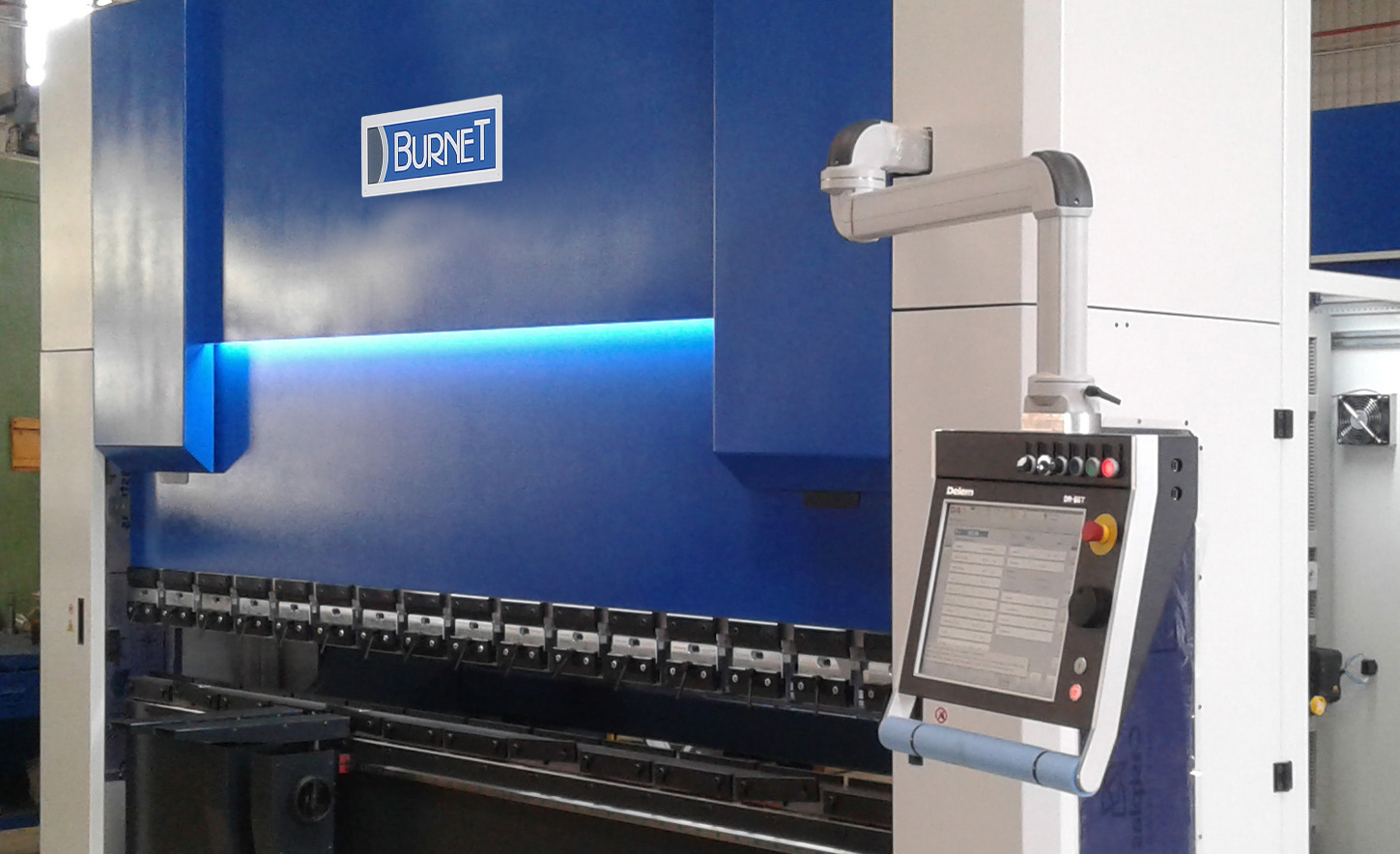

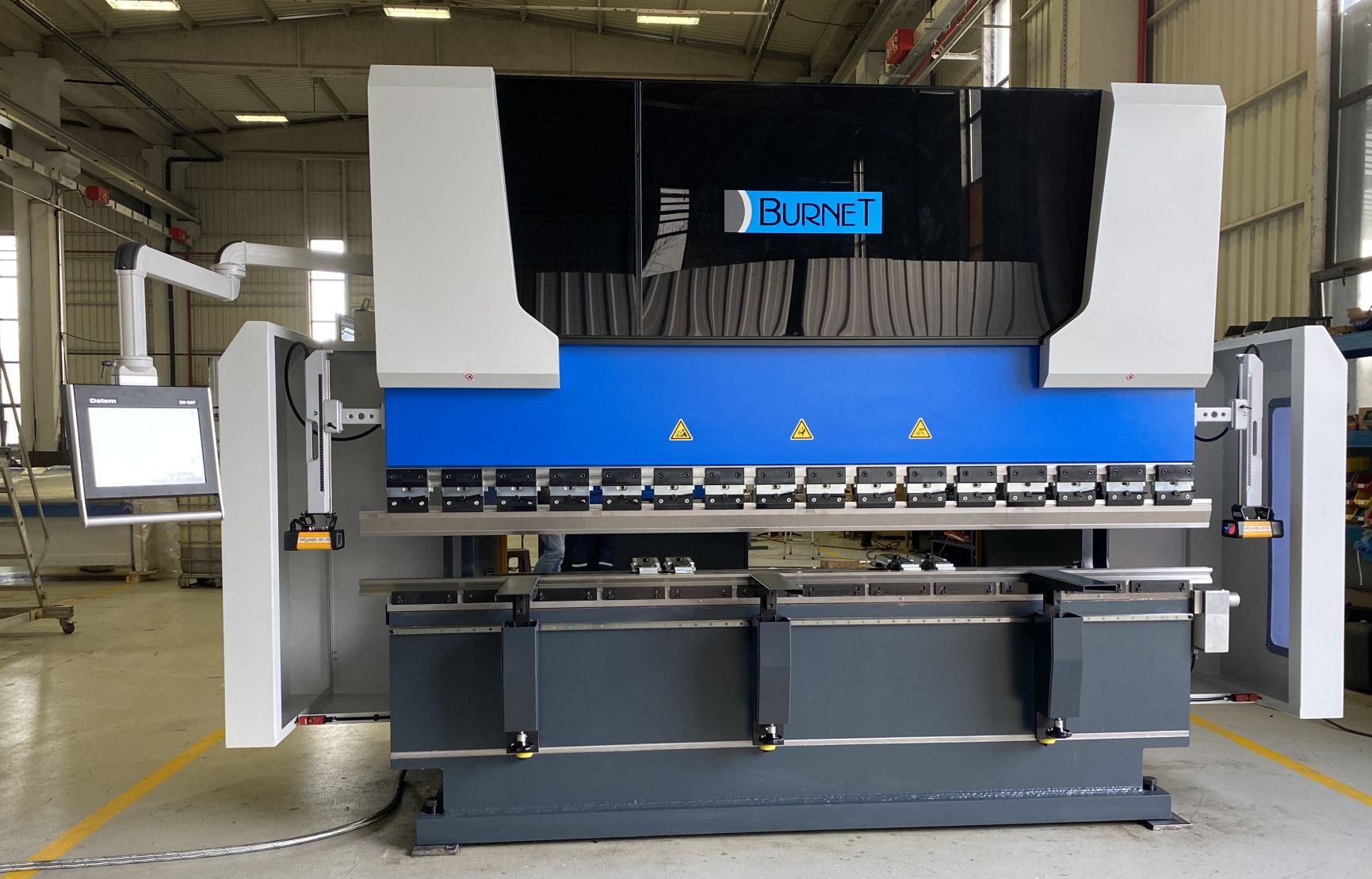

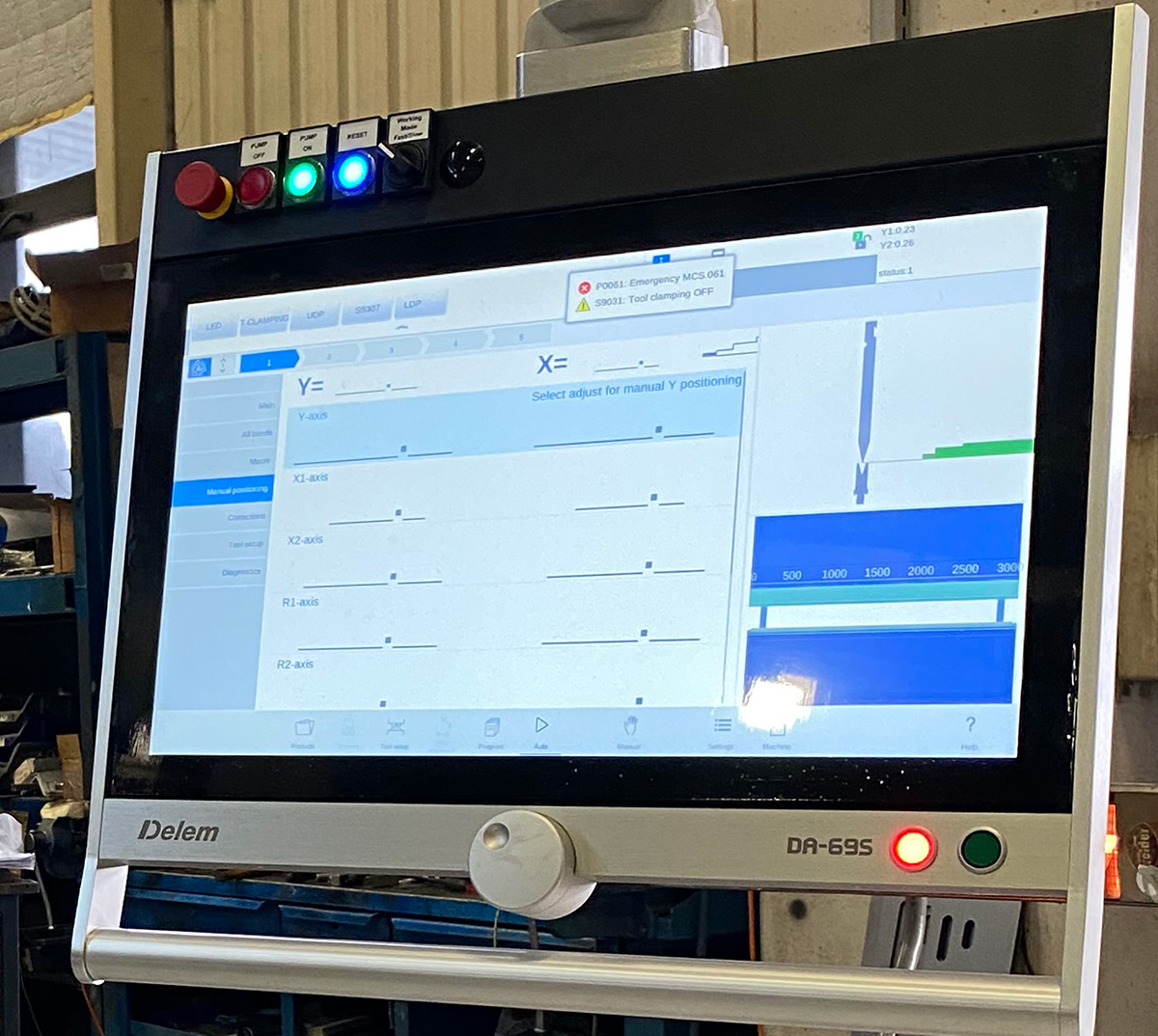

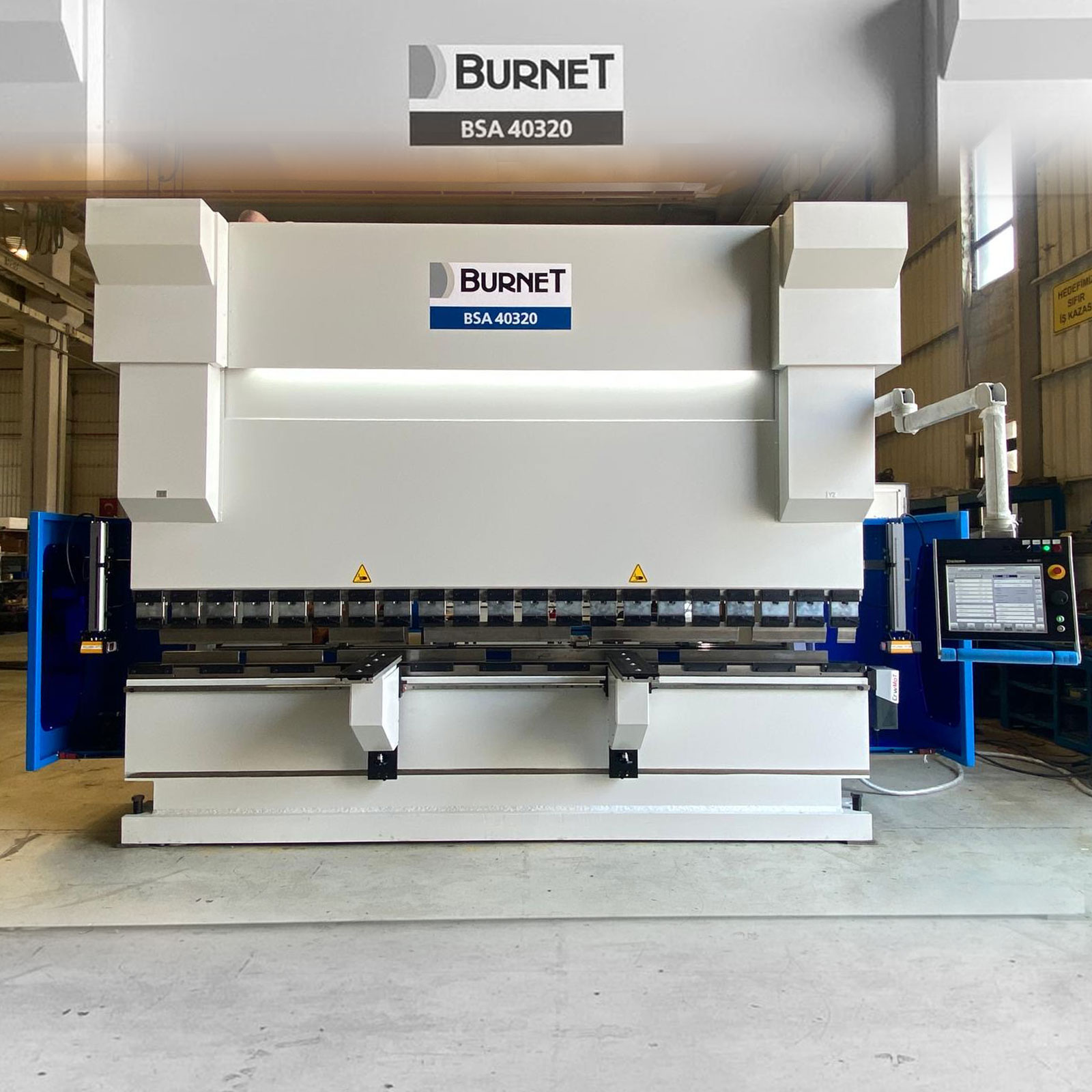

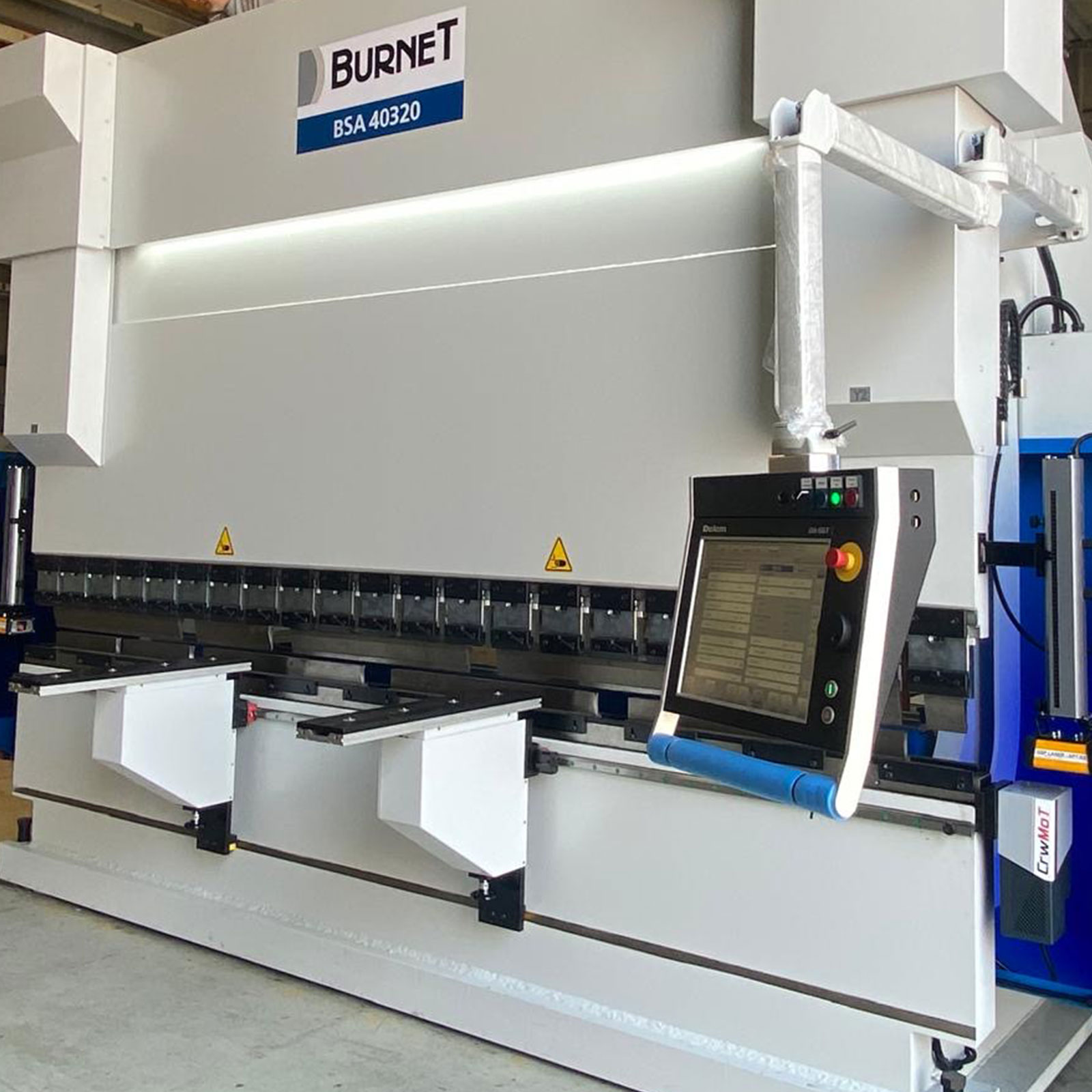

BSA press brakes has a flexible design. It can be equipped according to your requirements, from different backgauge options, increased daylight opening, sheet following arms. Easy to use cnc controls with different screen options. Well known hydraulic systems used for an accurate servo control. Robust frame construction optimised to allow the components fitted on the machine to give their utmost performance.

FEATURES

Robust frame construction optimised to allow the components fitted on the machine to give their utmost performance. Automatic cnc crowning of the beam positioned for the maximum effectiveness for each individual machine. 2, 4, 5 and 6 axis backgauges. Different clamping options...

OPTIONS

Standard 2 axis backgauge X-R with manual Z axis

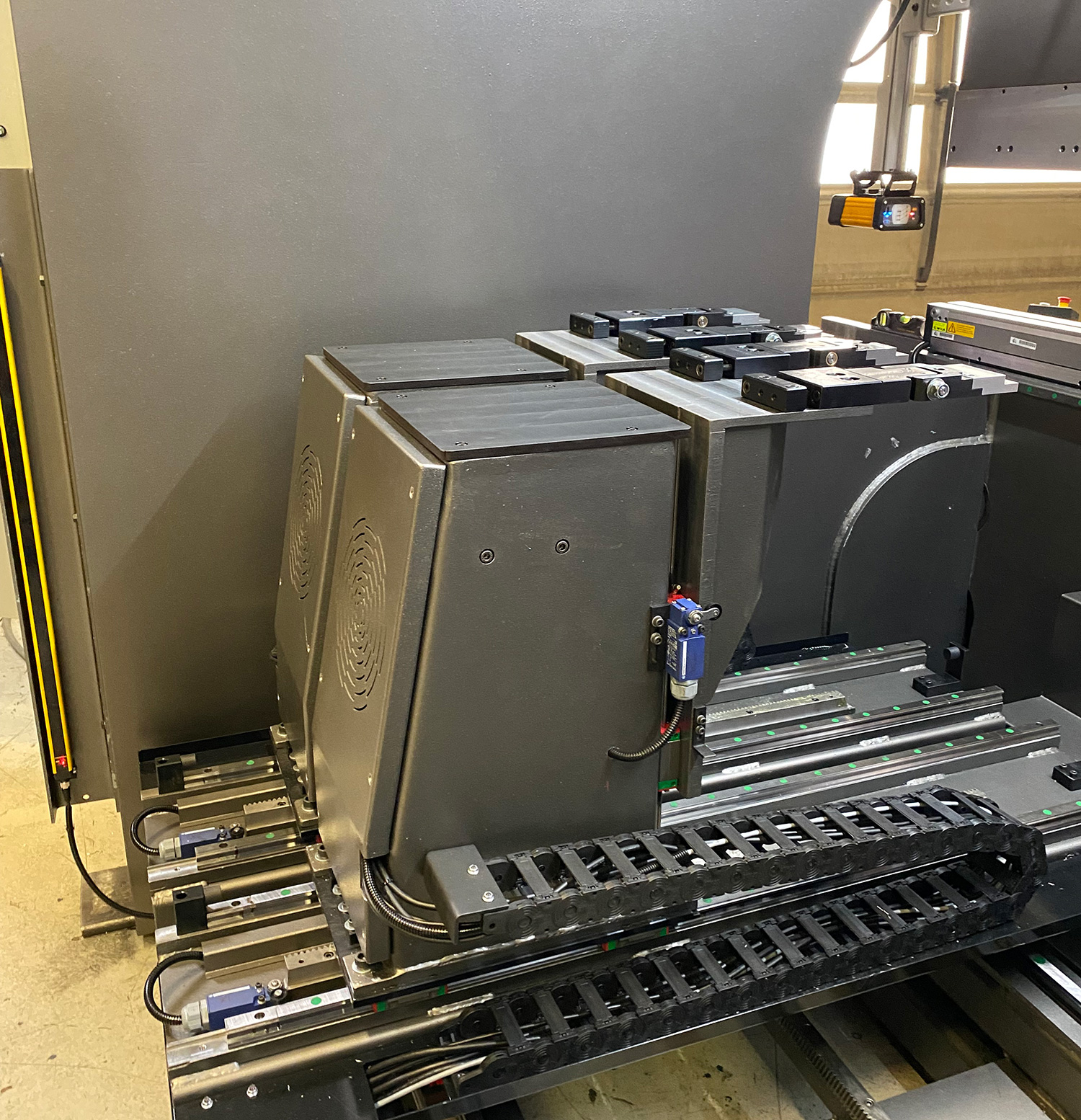

Five axis backgauge X-R-Z1-Z2-X3
Modular backgauge 6 axis X1-R1-Z1 / X2-R2-Z2
Led lighting on front and back at the working areas
Fast clamping systems
Safety system with motorised movement
Adaptive laser angle correction

TECHNICAL DATA

BSA MODEL		1340	1360	2160	21100	25100	25135	31100	31135	31175
Length (product) approx.	mm	2400	2400	3100	3100	3550	3550	4220	4220	4250
Width/depth (product) approx.	mm	1550	1550	1550	1820	1820	1850	1820	1850	2100
Height (product) approx.	mm	2350	2350	2350	2550	2550	2550	2550	2550	2950
Net weight approx.	kg	3350	3700	4200	6750	7300	7650	8400	8750	13000
Drive motor output	kW	4	7.5	7.5	11	11	15	11	15	15
Press force	t	40	60	65	100	100	135	100	135	175
Bending length	mm	1300	1300	2070	2070	2550	2550	3150	3150	3150
Stand passageway	mm	1000	1050	1600	1600	2100	2100	2600	2600	2600
Installation height	mm	380	380	380	445	445	445	445	445	455
Stroke	mm	200	200	200	250	250	250	250	250	250
Rapid mode	mm/s	120	120	140	160	160	160	160	160	160
Bending speed	mm/s	1--10	1--10	1--10	1--10	1--10	1--10	1--10	1--10	1--10
Retraction	mm/s	140	140	140	100	100	100	100	100	100
Reach depth	mm	300	300	300	400	400	400	400	400	400
Rear stop	mm	1010	1010	1010	1010	1010	1010	1010	1010	1010
Table height	mm	930	930	930	930	930	930	930	930	930
Table width	mm	60	60	60	60	60	60	60	60	60
Number of support brackets	pcs	2	2	2	2	2	2	2	2	2
Rear stop finger	pcs	2	2	2	2	2	2	2	2	2
X axis stroke	mm	5 - 650	5 - 650	5 - 650	5 - 650	5 - 650	5 - 650	5 - 650	5 - 650	5 - 650
X axis speed	mm/s	250	250	250	250	250	250	250	250	250
R axis stroke	mm	200	200	200	200	200	200	200	200	200
Oil tank capacity	l	110	110	110	230	230	230	230	230	230

BSA MODEL		31220	31320	41175	41220	41320	41400	61220	61320	61400
Length (product) approx.	mm	4250	4400	5250	5250	5400	5500	7500	7500	7500
Width/depth (product) approx.	mm	2100	2250	1950	2100	2250	2550	2200	2350	2550
Height (product) approx.	mm	2950	3350	2850	2950	3350	3500	3100	3350	3500
Net weight approx.	kg	19500	17500	13750	16500	22250	26750	25600	35500	38500
Drive motor output	kW	18.5	22	15	18.5	22	30	18.5	22	30
Press force	t	220	320	175	220	320	400	220	320	400
Bending length	mm	3150	3150	3700	3700	4100	4100	6100	6100	6100
Stand passageway	mm	2600	2600	3150	3150	3600	3600	5600	5600	5600
Installation height	mm	525	630	455	525	630	630	525	630	630
Stroke	mm	275	350	250	275	350	350	275	350	350
Rapid mode	mm/s	140	120	160	140	120	120	120	120	120
Bending speed	mm/s	1--10	1--9	1--10	1--10	1--9	1--9	1--10	1--9	1--9
Retraction	mm/s	100	90	100	100	90	80	100	90	80
Reach depth	mm	400	400	400	400	400	400	400	400	400
Rear stop	mm	1010	1010	1010	1010	1010	1010	1010	1010	1010
Table height	mm	930	930	930	930	930	960	1020	960	960
Table width	mm	90	90	60	90	90	90	90	90	90
Number of support brackets	pcs	2	2	2	2	2	2	2	2	2
Rear stop finger	pcs	2	2	2	2	2	2	2	2	2
X axis stroke	mm	5 - 650	5 - 650	5 - 650	5 - 650	5 - 650	5 - 650	5 - 650	5 - 650	5 - 650
X axis speed	mm/s	250	250	250	250	250	250	250	250	250
R axis stroke	mm	200	200	200	200	200	200	200	200	200
Oil tank capacity	l	300	360	230	300	360	500	300	360	500
